Details
Two 45 degree elbows can be used to offset the stove pipe and to avoid obstructions in a vertical run.
For interior use only.
Why you should buy our Class A Flues
| Features | Benefits |
|---|---|
| Air insulated double walled stove pipe | Reduced minimum clearance to combustibles: 6" to walls and 8" to the ceiling |
| Maintains high flue gas temperatures for a strong, steady draft | Improves Stove performance |
| Adjustable lengths available | Eliminate the need for cutting or crimping. |
It is for use with free-standing wood stoves, fireplace inserts, fireboxes, fireplaces, furnaces, cook stoves, boilers, and water heaters.
- Additional Info
- Installation
- Deliveries
- Certification
Installation Instructions
Click on the buttons below to access installation guides and videos:
Delivery Information
We offer reliable and fast shipping:
- Standard Delivery: From stock, in 3–5 days
- Returns: Within 14 days of delivery
For more details on our shipping policies, click here.
Certification
Certified to meet UL103HT standards, ensuring high safety and performance for residential heating appliances that require a UL103HT chimney system.
.
Additional Information

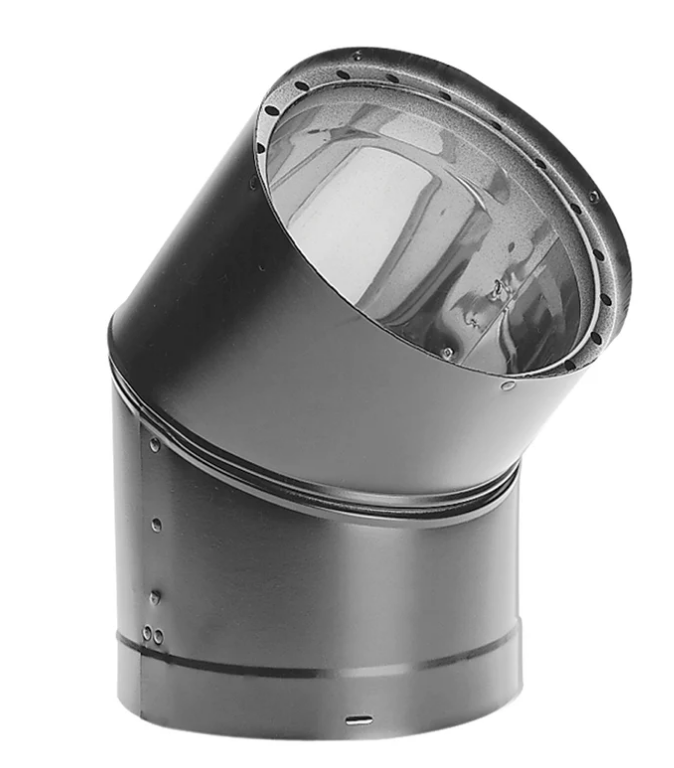

| Name | 45 Degree Elbow |
|---|---|
| SKU | 6DVL-E45 |
| Inside Pipe | Stainless Steel type 304 |
| Outside Pipe | Galvanized Steel -painted black |
| Overlap | 3/4" |
| Thickness Inside Pipe (Inches) | 0.016" |
| Thickness outside pipe (Inches) | 0.018" |
| Minimum clearance to combustibles (inch) | 6" to walls and 8" to the ceiling |
| Listing | ULC S641 |
| Delivery Time (working days) | East Coast: 1 - 4 ; California 5 - 8; Others 3 - 6 |
| (compatible with) internal diameter (inches) | 6 |
