Which Chimney Pipe Do You Need for a Wood Burning Stove?
Quick answer: A wood stove needs two pipe types. Stove pipe connects the stove to the wall or ceiling, then Class A insulated chimney pipe carries the gases through the structure and above the roof.
Key Takeaways
- Stove pipe stays in the room. Class A insulated pipe does every penetration through wall, ceiling, attic and roof.
- Match the pipe diameter to the stove outlet and never reduce below it. Class A on the US store is stocked in 6in and 8in.
- Single-wall stove pipe needs far more room around it than double-wall, so the wall distance often decides which one you buy.
- A complete matched kit removes the guesswork: one curated line, one system, every transition part accounted for.
- Free flue-design help is available before you order, and a standard install is well within reach for a capable owner.
The Two Pipe Types, In Plain Terms
Here is the part most people miss. The black pipe you see rising from the stove is not chimney pipe at all, and it must never pass through a wall or ceiling. It is a connector: a short indoor run that gets the flue gases up to the transition point. From that point the job belongs to Class A insulated chimney pipe, which is built for the heat and for the clearances a structure demands.
Get that split right and the rest of the design falls into place. Get it wrong, and you have combustible framing sitting next to uninsulated steel.
How to Size the Pipe for Your Stove
Read the diameter off the stove's flue collar, then buy that size. A 6in outlet takes 6in pipe, an 8in outlet takes 8in pipe. Metric-labeled stoves state the same sizes as 152.4mm and 203.2mm. Reducing the diameter to save a little on parts chokes the draft and pushes smoke back into the room, so it is never the right economy.
If your stove sheet is missing or ambiguous, send us the appliance details and the route and we will size the system for you at no charge.

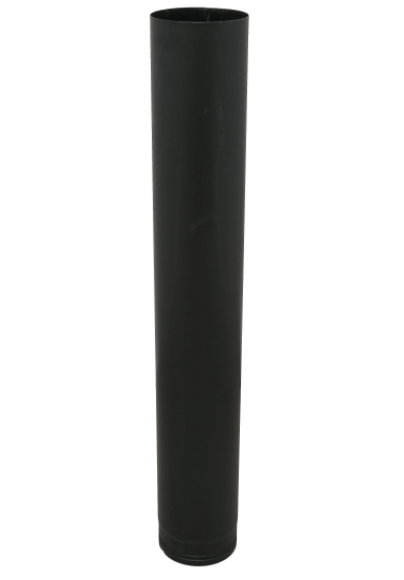

Single-Wall Or Double-Wall Stove Pipe?
The honest answer: measure the distance from the stove to the nearest combustible surface first, then choose. Single-wall is lighter on cost and fine when the stove stands well out into the room. Double-wall buys you a much tighter installation and keeps the outer surface cooler. On the US store single-wall stove pipe is stocked in 6in and 8in, and double-wall connector pipe in 6in.
Per NFPA 211, single-wall stove pipe (the connector pipe inside the room between the appliance and the Class A chimney) must maintain at least 18 inches of clearance from any combustible wall, ceiling, or framing.
Per NFPA 211, double-wall stove pipe is rated for reduced clearances typically 6 inches from combustible walls and 8 inches from ceilings (verify exact clearance with the specific UL-listed product).
| Pipe Type | Where It Goes | Best For |
|---|---|---|
| Single-wall stove pipe | Room only, stove to transition | Stove standing well clear of walls |
| Double-wall stove pipe | Room only, stove to transition | Tighter rooms, stove closer to a wall |
| Class A insulated chimney pipe | Through wall, ceiling, attic, roof and above | Every structural penetration and the outdoor run |
Shop Through-the-Wall Chimney Systems

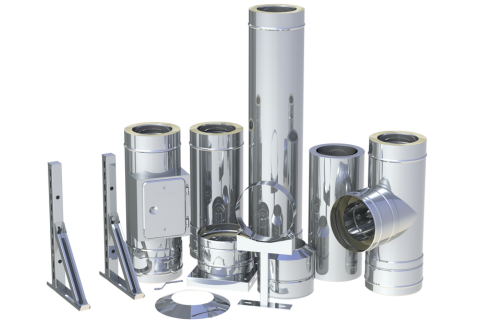

Class A Insulated Chimney Pipe: Why It Handles the Structure
The insulation between the inner liner and the outer wall is what lets this pipe run close to timber and drywall. That is the whole reason it exists.
Class A insulated chimney pipe, when UL 103 HT-listed for wood-burning, maintains a minimum of 2 inches clearance to combustibles per the standard listing. Always verify the exact clearance specified by the manufacturer's UL listing for the specific product.
Sections come in a range of lengths so you can build the exact height you need without cutting. Two useful examples from the US store: a 6in diameter pipe in the 36in length, and an 8in diameter pipe in the 48in length. Prices sit on the live product listings, which is the only place they are guaranteed current.
Can You Use an Existing Fireplace Chimney?
Sometimes, and only after inspection. A masonry fireplace flue is usually far wider than a stove needs, which cools the gases, weakens the draft and builds creosote quickly. The normal solution is a correctly sized stainless liner running inside the masonry, connected to the stove, rather than venting a modern stove into an oversized open flue. Liner kits are stocked in 4in, 5in, 5.5in and 6in.
The alternative, a full metal Class A system, avoids masonry construction entirely and costs a great deal less than building a new masonry chimney. Ask us which route suits your house before you buy parts, or read our chimney installation cost breakdown to compare the two.
Is a Standard Install Something You Can Do Yourself?
Most of our buyers fit their own system, and a straightforward vertical run through a ceiling and roof is achievable with normal tools, a helper and a careful afternoon or two. Doing it yourself is where the real saving sits, because the parts are the smaller half of a professionally fitted job.
Your warranty does not stand in the way of that. Our limited lifetime warranty asks that the system is installed according to the supplied instructions, whether the work is carried out by the owner or by a contractor. What matters is following the instructions, not who holds the screwdriver. The full terms are on our warranty page.
Per NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances), chimney installations must follow defined clearances to combustibles, minimum height above the roof penetration, and material requirements for the fuel type. Local codes typically adopt NFPA 211 by reference.
How Long Does Chimney Pipe Last, and What Maintenance Does It Need?
Insulated chimney pipe is a long-service component rather than a consumable, and our limited lifetime warranty reflects that: 100% of the original purchase price for the first 15 years, then replacements at 50% of the original price, for as long as the original consumer owns the system.
- Sweep the full flue at least once per heating season, and more often if you burn unseasoned wood.
- Check the joints and locking bands for movement each time you sweep.
- Look for rust streaks or staining at the transition, which point to condensation from a run that is losing heat.
- Burn dry, seasoned wood. Hot flue gases deposit far less creosote than smouldering ones.
Is the Pipe Actually Insulated? How to Check
Look at a cut section or the end of a length: insulated Class A pipe shows a visible packed layer between two stainless skins, and the section feels notably heavier than plain connector pipe. The listing label on the pipe itself states the standard it is built to. If the pipe is a single skin of steel, it is stove pipe and it cannot pass through a structure.
Chimney Height and Draft
Draft depends on total height, on the flue staying warm, and on where the chimney terminates relative to the roof and nearby obstructions. A fully vertical route drafts best because there are no elbows to slow the gases. Height above the roof is set by code, and the full rule with the measuring method is in our chimney height guide.

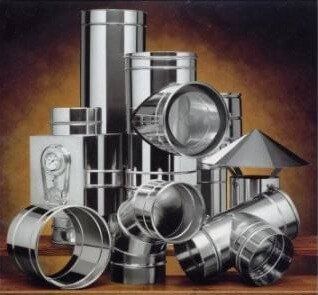

Complete Matched Systems, Not a Parts Hunt
We carry one curated product line, so every section, transition, support and termination component is designed to fit the next one. That is deliberate: a single matched system beats cross-referencing three brands and hoping the joints seal. Tell us the route and the stove, and the flue design comes back to you free.
Returns run 14 days, no questions asked, and orders ship from the nearest warehouse, with small orders often going out next day and larger shipments taking up to five business days.
