Extended Roof Brace

Name: Flue-pipes.com
Address: 1914 Thomas Ave, Cheyenne, WY 82009, US
Telephone: 888-834-0880

$205.00

Taxes calculated at checkout. Free transport

Qty:

« Go Back

14 Days Guaranteed Return
14 day cooling off period whereby your goods can be sent back to us

Limited Lifetime Warranty
Our no quibble promise to you

Lowest Price Guarantee
Cheaper elsewhere?; We'll beat it by 5%

Details

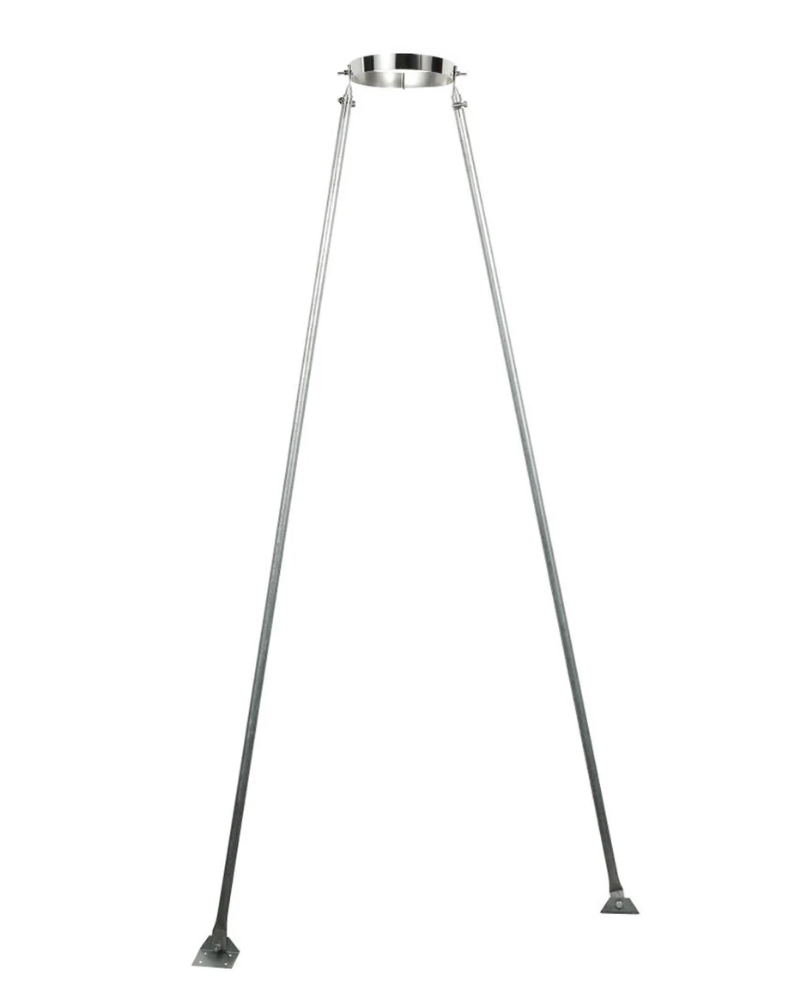

The extended roof brace is used to help support the chimney where it extends more than 5 feet above the roof. Legs adjust from 65-130 inches and pivot at the ring and brackets to fit any roof pitch.

An extended roof brace or other support must be used for every 5 feet of chimney above the roof (if your chimney extends 12 feet above your roof you need 2 roof support braces).

The Extended Roof Brace does not support the weight of the chimney. It supports the lateral movement only.

Note: The collar of the extended roof brace is made from stainless steel while the legs and feet are made from galvanized steel.

Why you should buy our Class A Flues

Features	Benefits
Made of 304 stainless steel for superior corrosion resistance	Longer Lifetime - Limited Lifetime Warranty
0.019" thick inner and outer walls (17% thicker than our competition)	Longer Lifetime - Limited Lifetime Warranty
High Density 1.18" thick ceramic fiber blanket insulation ensures no hot spots and no settling of insulation	Maintains 2" clearance to combustibles over time

Areas of Use

It is for use with free-standing wood stoves, fireplace inserts, fireboxes, fireplaces, furnaces, cook stoves, boilers, and water heaters.

Additional Info
Installation
Deliveries
Certification

Installation Instructions

Click on the buttons below to access installation guides and videos:

External Flue Installation Guide Internal Flue Installation Guide

Watch Video: External Flue Setup Watch Video: Internal Flue Setup

Delivery Information

We offer reliable and fast shipping:

Standard Delivery: From stock, in 3–5 days
Returns: Within 14 days of delivery

For more details on our shipping policies, click here.

Certification

Certified to meet UL103HT standards, ensuring high safety and performance for residential heating appliances that require a UL103HT chimney system.

Additional Information

Name	Extended Roof Brace
SKU	FP-SHT8ERB
Inside Pipe	Stainless Steel type 304
Thickness Inside Pipe (Inches)	0.019"
Fuels	Wood, Gas, Coal or Oil.
Minimum clearance to combustibles (inch)	2"
Delivery Time (working days)	East Coast: 1 - 4 ; California 5 - 8; Others 3 - 6
Transport costs	Free shipping within the contiguous United States.
(compatible with) internal diameter (inches)	8
Compatible with other chimney pipe brands?	No

Need Help Defining Your Chimney System?

Not sure how to design your complete flue system? Please call us! 888-834-0880 Our experts are here to help you plan the right setup, ensuring all components work together safely and efficiently.

Ready to Install?

Once your full chimney system is defined and all parts are gathered, follow the step-by-step instructions in our Installation Guides for a safe and straightforward installation.
