Details

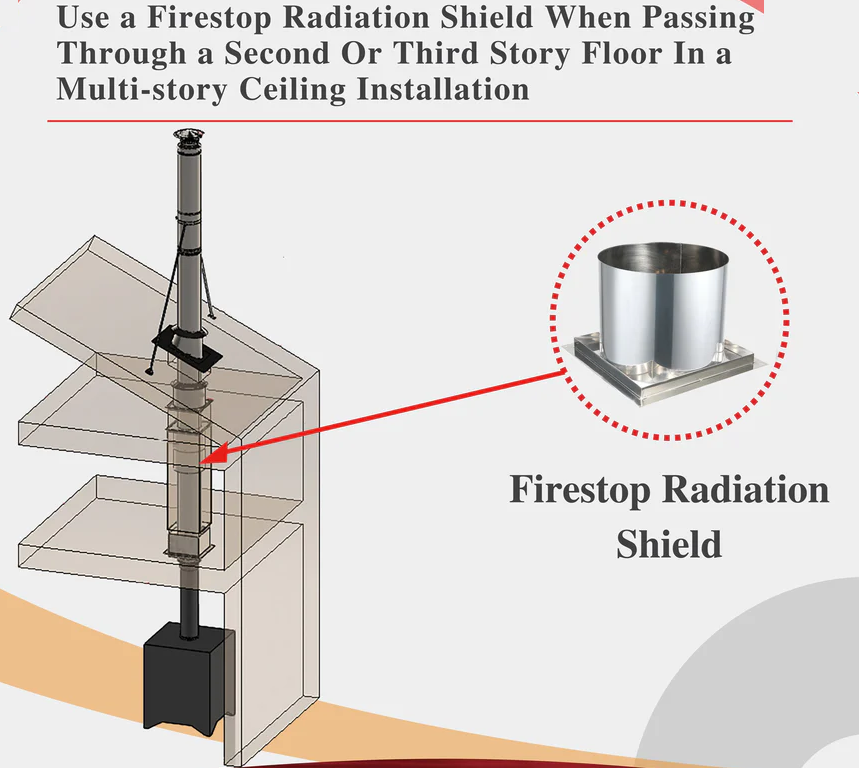

The Floor/Ceiling firestop radiation shield is used when passing through a second story floor, and at every floor above, to protect the floor joists where the chimney passes through the floor.
The Floor/ceiling radiation shield is installed on the underside of the ceiling/floor framing, with the cylindrical "tube" pointing upward.
Example: in a 3 story home where the appliance is on the ground floor the support box is installed in the 1st floor ceiling, a radiation shield is installed at the 2nd and 3rd floor ceilings (where the chimney enters the attic space).
A Floor/ceiling radiation shield is not installed where the chimney penetrates the roof.
Why you should buy our Class A Flues
| Features | Benefits |
|---|---|
| Made of 304 stainless steel for superior corrosion resistance | Longer Lifetime - Limited Lifetime Warranty |
| 0.019" thick inner and outer walls (17% thicker than our competition) | Longer Lifetime - Limited Lifetime Warranty |
| High Density 1.18" thick ceramic fiber blanket insulation ensures no hot spots and no settling of insulation | Maintains 2" clearance to combustibles over time |
It is for use with free-standing wood stoves, fireplace inserts, fireboxes, fireplaces, furnaces, cook stoves, boilers, and water heaters.
- Additional Info
- Installation
- Deliveries
- Certification
Installation Instructions
Click on the buttons below to access installation guides and videos:
Delivery Information
We offer reliable and fast shipping:
- Standard Delivery: From stock, in 3–5 days
- Returns: Within 14 days of delivery
For more details on our shipping policies, click here.
Certification
Certified to meet UL103HT standards, ensuring high safety and performance for residential heating appliances that require a UL103HT chimney system.
.
Additional Information
| Name | Floor/Ceiling Radiation Shield |
|---|---|
| SKU | FP-SHT8FRS |
| Inside Pipe | Stainless Steel type 304 |
| Thickness Inside Pipe (Inches) | 0.019" |
| Fuels | Wood, Gas, Coal or Oil. |
| Minimum clearance to combustibles (inch) | 2" |
| Delivery Time (working days) | East Coast: 1 - 4 ; California 5 - 8; Others 3 - 6 |
| Transport costs | Free shipping within the contiguous United States. |
| (compatible with) internal diameter (inches) | 8 |
| Compatible with other chimney pipe brands? | No |
