Details

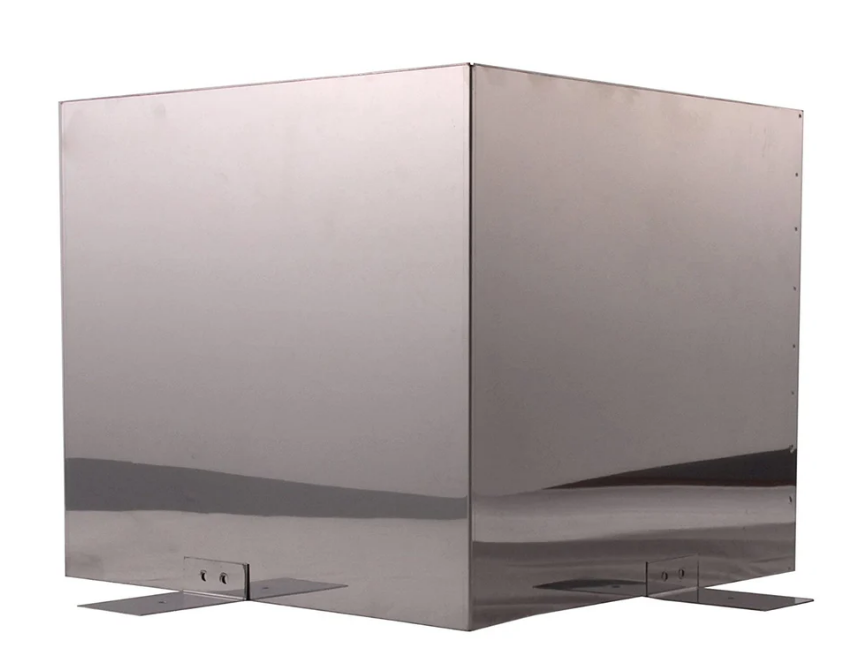

Roof Radiation Shield
The Roof Radiation Shield is a firestop component that protects rafters and other combustible materials where the Class A chimney passes through the roof. It ensures the required 2" clearance to combustibles at the roofline.
- Required when using a Roof Support Bracket in a cathedral ceiling installation.
- Required when the chimney is enclosed in a chase immediately before it passes through the roof.
- Not required in flat ceiling installations (with or without attic), where a Ceiling Support Box is used and the chimney passes directly through the roof with standard Roof Flashing + Storm Collar + Cap.
Why you should buy our Class A Flues
| Features | Benefits |
|---|---|
| Made of 304 stainless steel for superior corrosion resistance | Longer Lifetime - Limited Lifetime Warranty |
| 0.019" thick inner and outer walls (17% thicker than our competition) | Longer Lifetime - Limited Lifetime Warranty |
| High Density 1.18" thick ceramic fiber blanket insulation ensures no hot spots and no settling of insulation | Maintains 2" clearance to combustibles over time |
It is for use with free-standing wood stoves, fireplace inserts, fireboxes, fireplaces, furnaces, cook stoves, boilers, and water heaters.
- Additional Info
- Installation
- Deliveries
- Certification
Installation Instructions
Click on the buttons below to access installation guides and videos:
Delivery Information
We offer reliable and fast shipping:
- Standard Delivery: From stock, in 3–5 days
- Returns: Within 14 days of delivery
For more details on our shipping policies, click here.
Certification
Certified to meet UL103HT standards, ensuring high safety and performance for residential heating appliances that require a UL103HT chimney system.
.
Additional Information
| Name | Roof Radiation Shield |
|---|---|
| SKU | FP-SHT6RRS |
| Inside Pipe | Stainless Steel type 304 |
| Fuels | Wood, Gas, Coal or Oil. |
| Minimum clearance to combustibles (inch) | 2" |
| Delivery Time (working days) | East Coast: 1 - 4 ; California 5 - 8; Others 3 - 6 |
| Transport costs | Free shipping within the contiguous United States. |
| (compatible with) internal diameter (inches) | 6 |
| Compatible with other chimney pipe brands? | No |
