Wall Thimble

$114.00

Taxes calculated at checkout. Free transport

Qty:

« Go Back

14 Days Guaranteed Return
14 day cooling off period whereby your goods can be sent back to us

Limited Lifetime Warranty
Our no quibble promise to you

Lowest Price Guarantee
Cheaper elsewhere?; We'll beat it by 5%

Details

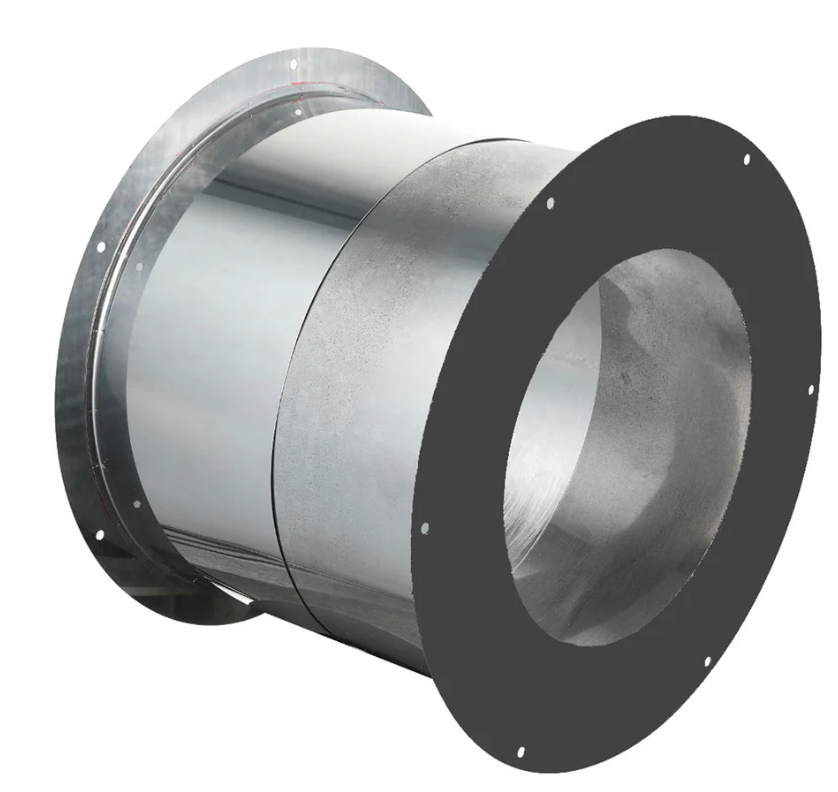

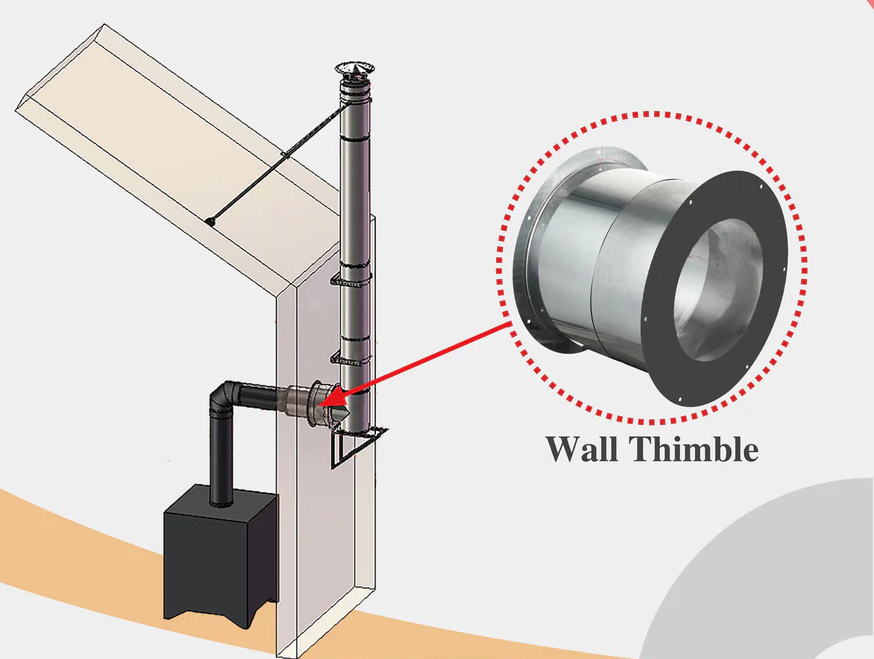

The Wall Thimble is used for through-the-wall chimney installations. It protects a combustible wall as the chimney passes safely through to the outside, and provides a finished look to the framed opening on the inside. Most US exterior walls contain wood framing and are combustible!

The Wall Thimble can adjust to accommodate walls from 6 to 10 inches thick.

The Wall Thimble can adjust to accommodate walls from 6 to 10 inches thick. Also available in 6 Inch

Why you should buy our Class A Flues

Features	Benefits
Made of 304 stainless steel for superior corrosion resistance	Longer Lifetime - Limited Lifetime Warranty
0.019" thick inner and outer walls (17% thicker than our competition)	Longer Lifetime - Limited Lifetime Warranty
High Density 1.18" thick ceramic fiber blanket insulation ensures no hot spots and no settling of insulation	Maintains 2" clearance to combustibles over time

Areas of Use

It is for use with free-standing wood stoves, fireplace inserts, fireboxes, fireplaces, furnaces, cook stoves, boilers, and water heaters.

Additional Info
Installation
Deliveries
Certification

Installation Instructions

If the wall is thinner, the wall thimble can actually be cut down. It’s basically just two sleeves that slide into each other. You can trim one side off if needed. A pair of tin snips is enough to cut it. So you could remove about 2 inches if necessary, and then secure it in place.

If you want to extend it, you’d need some galvanized steel to wrap around it. That’s not something we sell, but most people can get it from a local hardware store. You’d separate the two sections and then fill the gap. You can use something like high-temperature aluminum tape. Some people use rivets.

Click on the buttons below to access installation guides and videos:

External Flue Installation Guide Internal Flue Installation Guide

Watch Video: External Flue Setup Watch Video: Internal Flue Setup

Delivery Information

We offer reliable and fast shipping:

Standard Delivery: From stock, in 3–5 days
Returns: Within 14 days of delivery

For more details on our shipping policies, click here.

Certification

Certified to meet UL103HT standards, ensuring high safety and performance for residential heating appliances that require a UL103HT chimney system.

Additional Information

Name	Wall Thimble
SKU	FP-SHT8WT-P
Inside Pipe	Stainless Steel type 304
Outside Pipe	Stainless Steel type 304
Thickness Inside Pipe (Inches)	0.019"
Thickness outside pipe (Inches)	0.019"
Fuels	Wood, Gas, Coal or Oil.
Thickness Insulation (inch)	1.18"
Minimum clearance to combustibles (inch)	2"
Insulation	High Density Ceramic Fiber
Delivery Time (working days)	East Coast: 1 - 4 ; California 5 - 8; Others 3 - 6
Transport costs	Free shipping within the contiguous United States.
(compatible with) internal diameter (inches)	8
Compatible with other chimney pipe brands?	No

If Your Wall Is Only 4 Inches Thick

Problem: The Thimble Is Too Long and May Stick Out Awkwardly or Not Fit Flush

Action: If they are already bottomed out (telescoped as far as possible) and still too long, you can cut the telescoping sleeves.
Method: Use a hacksaw or tin snips to carefully trim the galvanized sleeve material. Cut the male/female ends equally until the total length matches your 4-inch wall plus the required extension.
Warning: Do not cut the insulation inside if possible; focus on trimming the metal sleeves.
