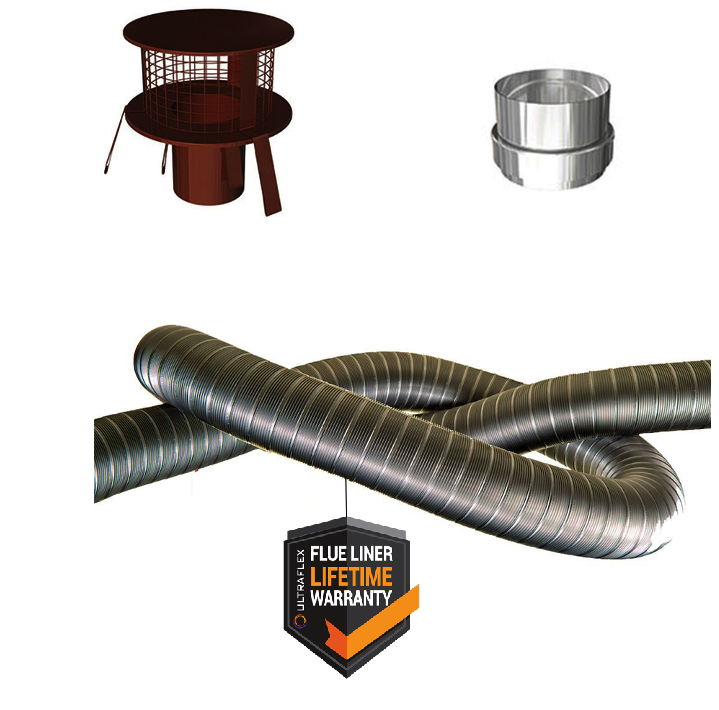

Our flexible liner grade 316L is suitable for the relining of masonry flues and use with wood, multi fuel stoves and open fires. The 904 grade is for coal.
We recommend to take some extra length; if your flue liner is not long enough for your installation there will undoubtedly be delays and disappointment (plus the additional cost of a correctly sized flue liner). Adding an extra metre (or two) - will help ensure your installation goes ahead without delay.
We also add the " Adapter stove pipe to flexible liner" to the shopping list.

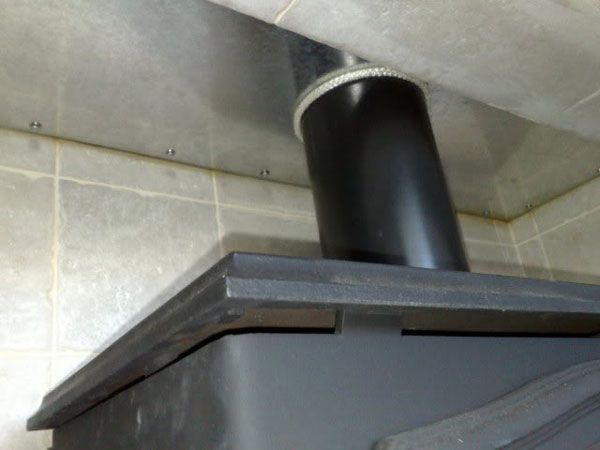

You can not connect the flexible liner directly to the stove. You need at least 500mm of stove pipes first.
At 1mm steel thickness the stovepipe can be easily cut to the required size using fine-grain grinding disks. Do not cut the small side of the pipe!
The most common wood stove position involves placing the rear half of the stove within the chimney cavity, while the front half protrudes out into the living space. In this case, it's necessary to connect your stove to the flue liner using two 'elbows' from the top of the stove - so in simple terms, if you can’t put the stove pipe directly up and out of the chimney, then you need to create some 45 degree corners in order for the liner to go backwards (into the chimney cavity) and then up out of the chimney.
The choice of the end parts depends on whether or not there is (still) a pot on top of the chimney.

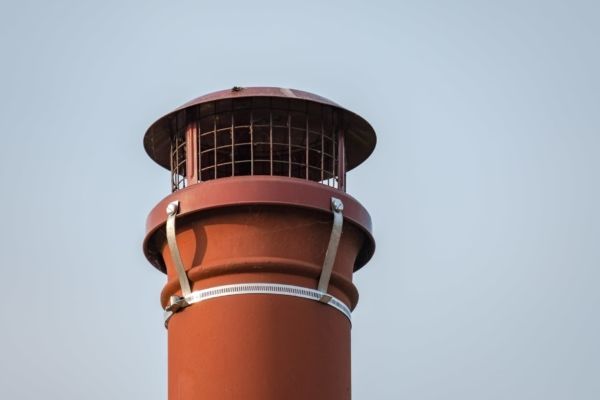

Pot still present: Pot hanger Raincap
For when there is still a pot on the roof. To suspend flue liner at the chimney pot.
No more pot: Fixing plate and Clamp
When there is no more pot on top the chinmey you also need a fixing plate on top of the chimney. (see complete explanation below)
14 Days Guaranteed Return14 day cooling off period whereby your goods can be sent back to us
Warranty: From 10 years to a lifetimeOur no quibble promise to you
Selected products
Connect liner to stoveFitting a flue liner
Chimney Flue kits are based on general assumptions of the typical dimensions of houses and bungalows. You may need to add or take out certain items which can be done in the shopping cart. Other items can also be added to cart as necessary. Flue-pipes.com does not take responsibility for the items installed in your flue system as this is merely a guide. Please check the whether the flue pack is appropriate for your requirements. Refer to HETAS regulations and building regulations for further clarification.
Lining a chimney can be a costly and time-consuming exercise – definitely something that you do not want to repeat because of a liner failing. As a result, we don’t sell cut-price or sub-standard inferior flue liners. It is one of those classic things where it literally isn’t worth the minuscule savings of buying the cheaper option.
At Flue Pipes, our chimney flue products come in superior quality and have a long shelf life. Purchasing a quality flexible flue liner for a log burner or any other appliance will pay off in the long run. Our collection of flue liner kits guarantees peace of mind and efficient heating that will make you want to stay at home throughout the cold season.
Browse our highest-quality flues that are not only UK-approved but also priced reasonably.
Available variants:
316 Flue Liner Kit 904 Flue Liner Kit 5" Flue Liner Kit 6" Flue Liner Kit
At Flue Pipes, we pride ourselves in selling top-tier chimney flue kits that come directly from our warehouse in Sheffield. Designed by professional trade fitters, our UK-approved chimney lining is suitable for many heating appliances.
Our flue liner kit is created from not one but two compressed stainless-steel layers. It just doesn’t get any safer or more efficient than this.
This unique laminate stays smooth when the product goes around the chimney bend, unlike a lesser-quality liner that usually comes apart when dragged through bends, allowing acids from soot deposits to enter and later cause corrosion.
Want to learn more about chimney liner kits? Check out what each stand is for:
Connector Pipes/ Stove Pipes
Chimney Liners
Single Wall Liners
Twin Wall Liners
If you have something more specific or need to get your purchase sorted out quickly, take advantage of our years of experience and head to our contact page.
