Details

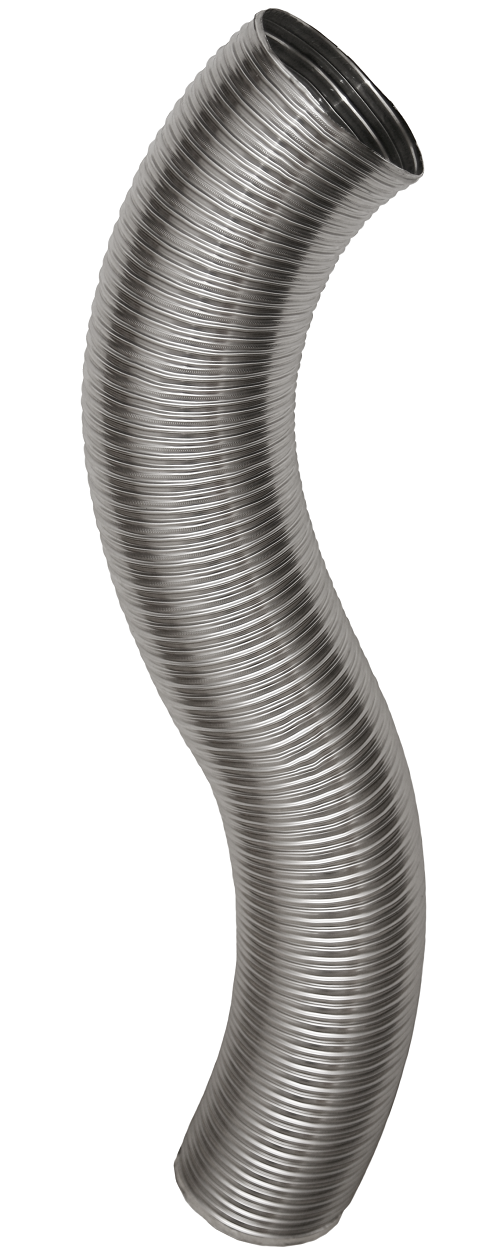

6 Inch Premium Class 1 Stainless Steel 904 (inside and outside) Flexible Chimney Liner, to be used when re-lining a masonry chimney . Price is per meter, but it will be supplied as a continuous length.
Please note: The liner should not be fitted directly to the appliance. A short length of either vitreous or 316 stainless steel (preferably with a clean-out door for sweeping) should be fitted from the appliance to the liner adaptor.
- Suitable for burning the following fuels: Coal, Seasoned Dried Wood, Gas, Oil, Coke, Peat and Smokeless fuels.
- This liner comes with a lifetime guarantee* (conditions apply).
- Normal operating temperature of up to 450°C for solid fuel and 250°C for Oil and Gas.
- HETAS approved product
- Manufactured in the UK
- Corrosion and crush resistant
Additional Information
| Name | Chimney Flue liner 904 - 8 Inch -per meter |
|---|---|
| Reference number | FS10208 |
| Inside pipe | AISI 316L (1.4404) |
| Type of fuel | Coal, Seasoned Dried Wood, Gas, Oil, Coke, Peat and Smokeless fuels. |
| Wall thickness (mm) | 2 x 0.12mm |
| Temperature of use | 600ºC continuous, 1000ºC peak. |
| Delivery time (working days) | 1-2 |
| Transport cost (total order) | 1 to 3 products: delivery costs £20.00; 4 products or more £29.99 (UK & Scottish Mainland) Free delivery > £200 GBP (UK & Scottish Mainland) |
| (Compatible with) internal pipe diameter (mm) | 200 |
Flexible Chimney Flue Liner Premium Class 1 - 904 grade -6 inch
to be used when re-lining a masonry chimney only - EN 1856-2 T600 N1 D V2 L70010 G. This flexible lining is suitable for:
Coal, Seasoned/Kiln/Dried wood
HETAS approved Solid Fuels
HETAS approved Smokeless Fuels
Gas appliances
Oil Fired appliances
The flue liner is made from 2 separate sheets of stainless steel:
The Outer: The outer skin is a pre-profiled ribbon of stainless steel, with deep, close together waves that create an extremely hard and protective exterior for the flue, like a shell. When your chimney liner is dragged down a brick flue it will undoubtedly be pulled and hit against the brick work. The outer/shell is a separate sheet (and not 1 or 2 pieces folded together) that protects the smooth inner from damage. It also makes it less likely that the flue in general will be damaged or compromised before installation compared to other flues that are soft and can be damaged as easily as being knocked in the back of a van.
The Inner: The Inner skin of our flue liner is a pre profiled ribbon of stainless steel, which has been made with a fine special oil spray to create a smooth inner surface. Unlike other flues our inner surface of steel has not been folded or scratched in production and has not been compromised in any way. It is locked to the outer skin purely with pressure using a patented technique. This means that this chimney liner essentially has a fresh un compromised inner surface for the flue gasses to pass through making it almost impossible for corrosion to set in.
Please see below our examples of our liner and traditional (cheaper) chimney liners.
• Lifetime Warranty (No quibble)
• Produced in the UK
• Extremely tough and strong
• Smooth inner
• Protective outer
• Flexible and Durable
• Premium flue and quality assured
