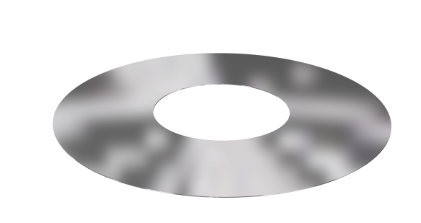

Round Trim Collar

£51.00

Prices are Incl. Tax Excl. Shipping

Details

Screw to the wall or ceiling. Or stick to the wall with small dabs of Silicone sealant (does not have to be any special sealant).

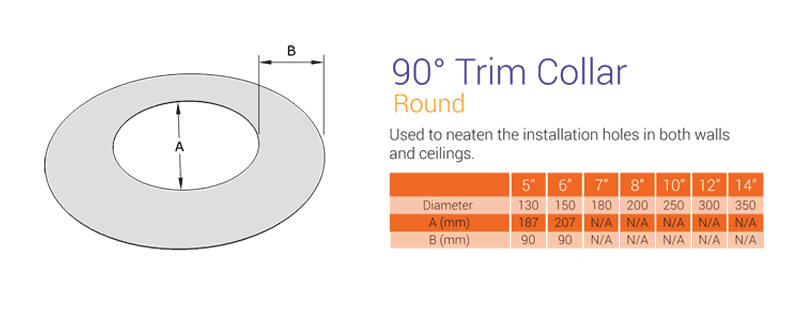

Attention! This product is for a flue with an internal diameter of 130 mm (5") and an outside diameter of 180mm.

Additional Information

Name Round Trim Collar
Reference number TWTC9006
Inside pipe 316 L Stainless Steel
Outside pipe 304 Stainless Steel
Overlap (cm) 60 mm
Thickness inside pipe (mm) 0,4
Thickness outside pipe (mm) 0,4
Type of fuel Wood, Oil, Gas, Low Sulpher Coal
Thickness insulation (mm) 25
Distance to flammables (cm) 70 mm
CE Classification EN 1856-1 EN1856-1 T450 N1 D V3- L50040 G60, EN1856-1 T600 N1 D VM- L20040 G70
Temperature of use 600ºC continuous, 1000ºC peak.
Delivery time (working days) 1 - 3
Transport cost (total order) 1 to 3 products: delivery costs £20.00; 4 products or more £29.99 (UK & Scottish Mainland) Free delivery > £200 GBP (UK & Scottish Mainland)
(Compatible with) internal pipe diameter (mm) 150
