Details

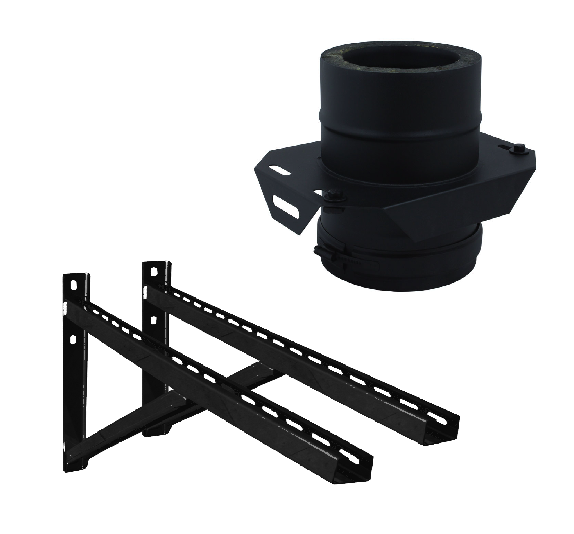

Base Support is used at the bottom of an external chimney system. Distance wall - Flue 150 -250mm
Additional Information
| Name | Long adjustable Base support 150 - 250mm |
|---|---|
| Reference number | MBTIBSB06 + MBTCRS06 |
| Inside pipe | 316L Stainless Steel |
| Outside pipe | 304 Stainless Steel |
| Overlap (cm) | 60 mm |
| Thickness inside pipe (mm) | 0,4 |
| Thickness outside pipe (mm) | 0,4 |
| Type of fuel | Wood, Oil, Gas, Low Sulpher Coal |
| Thickness insulation (mm) | 25 |
| Distance to flammables (cm) | 70 |
| CE Classification EN 1856-1 | EN1856-1 T450 N1 D V3- L50040 G60, EN1856-1 T600 N1 D VM- L20040 G70 |
| Temperature of use | 600ºC continuous, 1000ºC peak. |
| Delivery time (working days) | 1 - 3 |
| Transport cost (total order) | 1 to 3 products: delivery costs £20.00; 4 products or more £29.99 (UK & Scottish Mainland) Free delivery > £200 GBP (UK & Scottish Mainland) |
| (Compatible with) internal pipe diameter (mm) | 150 |
