Details

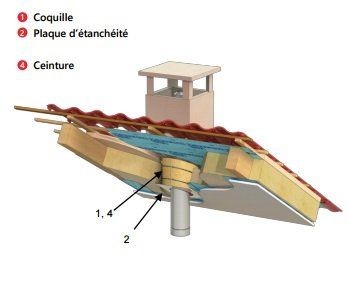

When a crossing is to be made airtight then a Spacer plate with rubber should be used to achieve this. It is a plate with an adjustable rubber gasket which affixes to the flue outer skin.
An Insulation body should be installed above the Spacer plate to ensure that heat is not transferred to combustible materials in the building construction. Where this type of arrangement is used and the top part of the crossing is an enclosure the system should be complemented with the use of ventilation grilles at the top and bottom of the enclosure, to ensure that the correct ventilation is achieved. This ventilation is needed to avoid an unexpected increase of temperatures inside in the event of a soot fire inside the flue.
Additional Information
| Name | Spacer Plate with Rubber |
|---|---|
| Reference number | STWSP |
| Inside pipe | AISI 316L |
| Outside pipe | AISI 304 |
| Overlap (cm) | 6 |
| Thickness inside pipe (mm) | 0.4 |
| Thickness outside pipe (mm) | 0.4 |
| Thickness insulation (mm) | 25 |
| Distance to flammables (cm) | 7 |
| CE Classification EN 1856-1 | T600 - N1 - D - V3 - L50040 - G70 |
| (Compatible with) internal pipe diameter (mm) | 150 |
