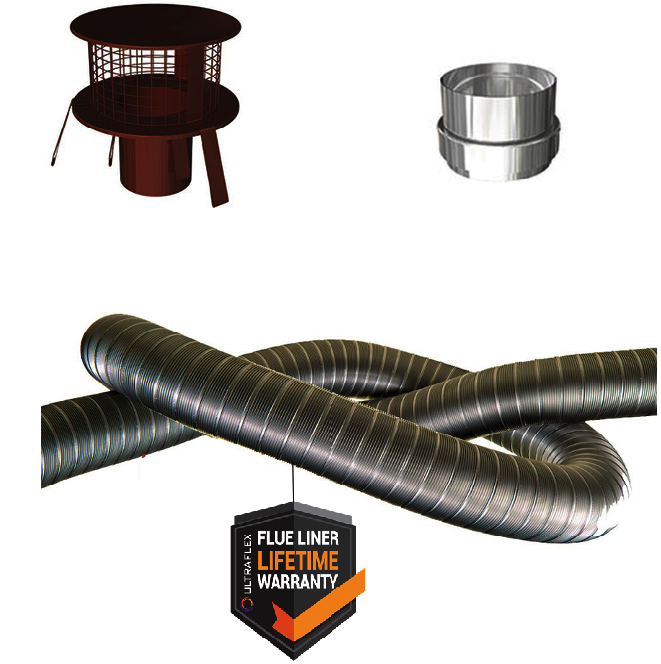

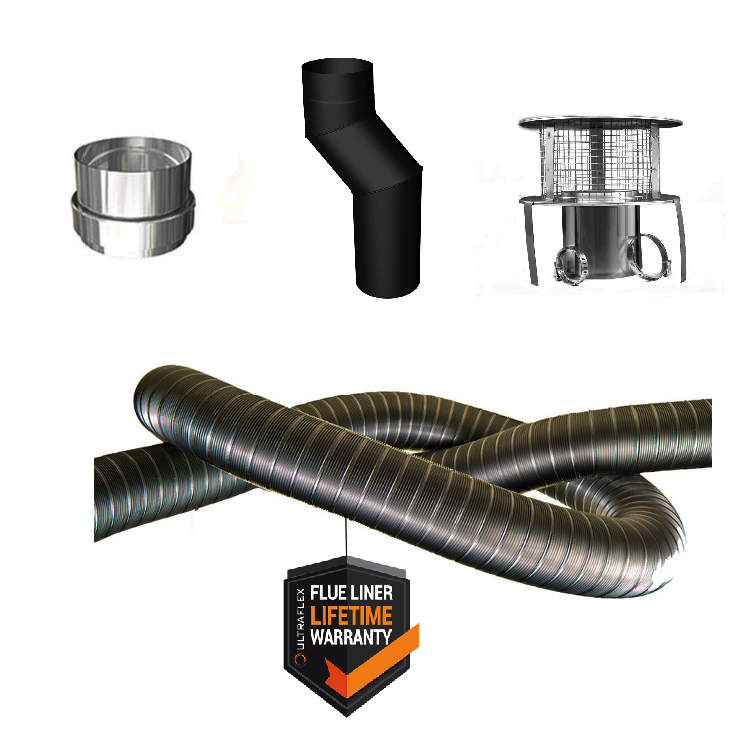

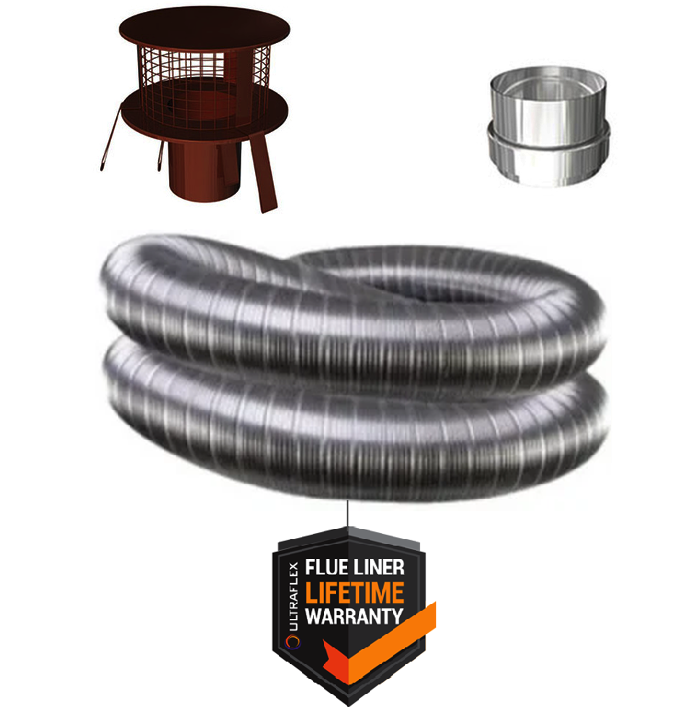

6" 904 Flue Liner Kit for Coal Stoves

£322.00

Incl. Tax Excl. Shipping

Lifetime Warrantee and HETAS approved!

What diameter of flue do you need (mm)?
WOODSTOVES & MULTIFUEL STOVES: The flue legally needs to be a minimum of 6" (150mm) in diameter if you are burning wood or coal. Unless when you install a DEFRA approved stove with a 5" flue outlet, in which case you can use a 5" liner (125mm).
What is the required length for the liner?

If your flue liner is not long enough for your installation there will undoubtedly be delays and disappointment (plus the additional cost of a correctly sized flue liner). Adding an extra metre (or two) - will help ensure your installation goes ahead without delay.

We also add the " Adapter stove pipe to flexible liner" to the shopping list. Plus a Nose Cone.

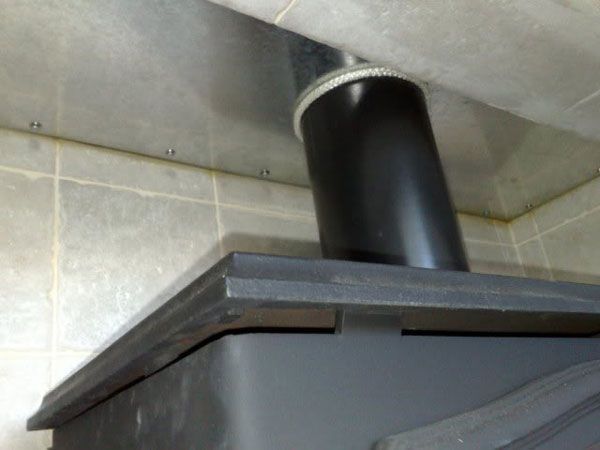

Choose the (necessary) connecting stove pipes

You can not connect the flexible liner directly to the stove. You need at least 500mm of stove pipes first.

At 1mm steel thickness the stovepipe can be easily cut to the required size using fine-grain grinding disks. Do not cut the small side of the pipe!

The most common wood stove position involves placing the rear half of the stove within the chimney cavity, while the front half protrudes out into the living space. In this case, it's necessary to connect your stove to the flue liner using two 'elbows' from the top of the stove - so in simple terms, if you can’t put the stove pipe directly up and out of the chimney, then you need to create some 45 degree corners in order for the liner to go backwards (into the chimney cavity) and then up out of the chimney.
What kind of finishing on the top is needed?

The choice of the end parts depends on whether or not there is (still) a pot on top of the chimney.

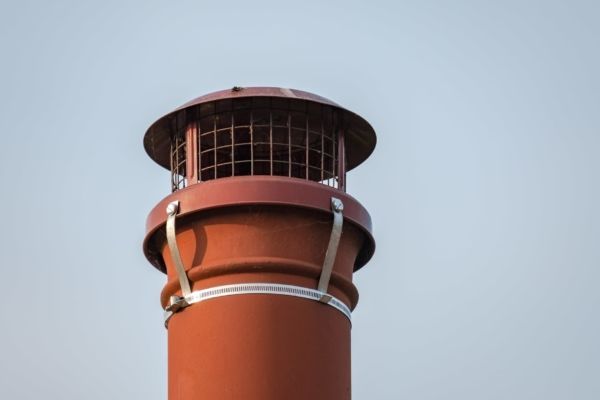

Pot still present: Pot hanger Raincap

For when there is still a pot on the roof. To suspend flue liner at the chimney pot.

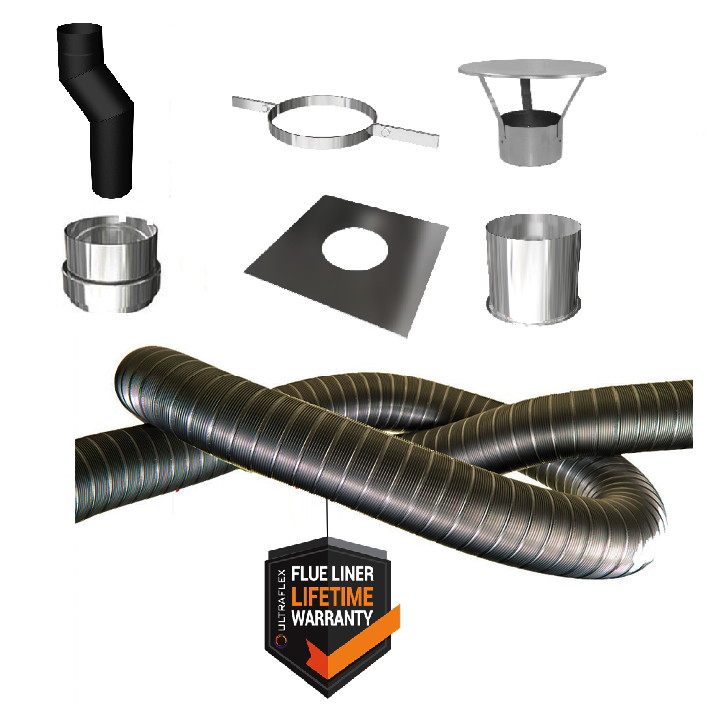

No more pot: Fixing plate and Clamp

When there is no more pot on top the chinmey you also need a fixing plate on top of the chimney. (see complete explanation below)

14 Days Guaranteed Return
14 day cooling off period whereby your goods can be sent back to us

Warranty: From 10 years to a lifetime
Our no quibble promise to you

Selected products

Connect the liner to the stove Fitting a flue liner Insulating a flexible liner

Flue Pipes has a wide selection of 6-inch 904 flue liner kits for your various types of chimneys. An adaptable stove pipe and a flexible liner are included in the kit. You can also find optional extras like suspending cowls and rain caps to improve the efficiency of your chimney even more.

Our 904 flue liner 6-inch components are made of flexible stainless steel, making them easy to install even in chimneys with bend designs. If you have limited DIY experience, you won’t struggle with inserting a lightweight flue liner into the chimney.

Specifications 6-inch 904 grade flue liner kit

At Flue Pipes, you can find 6-inch (150mm) 904-grade flue liners. The lengths of flue liners range from 4 to 14 meters. The 904 grade is also the best one on the market.

Our 6-inch 904 flue liner kit is suitable for wood-burning, coal, and other multifuel stoves.

In addition to being flexible, our 904-grade flue liners are also sturdy and will not corrode or rust. They are effortless to install and maintain since they don’t accumulate as much soot and creosote as other alternatives.

Choose Flue Pipes – Your Trusted Source of Chimney Components

By purchasing flue liners from Flue Pipes, you can be confident in their quality and reliability. Cleaning the chimney annually, your flue liner won’t lose its shape and efficiency for up to 20 years. Our lifetime warranty won’t let it happen!
